Electronics

I like aerials a lot. For everyone, who's interested in aerial I can recommend MMANA-GAL program. With the help of MMANA-GAL you can count lots of user's aerials and use them more effectively, also I can recommend a lot books by Mr. Goncharenko. There are a lot of usefull information in this books. For more information see here Also I worked with FPGA a bit. As a program for development I used Altera max+2 and as a programming language AHDL
I developed a communication node. There's a four stream bus and in this node I replace the first stream with another one

As an electronic engineer I developed several DAQ and controlling systems, for example:

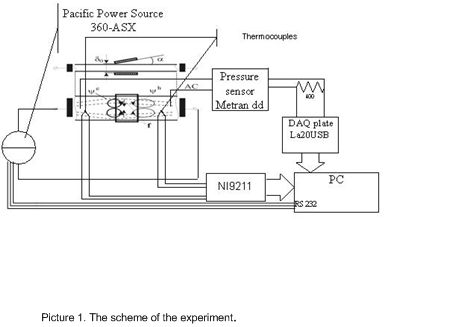

In this experiment we measure a temperature with the help of T-thermocouples and NI-DAQ plate NI9211. NI9211 send the data to the PC. To get the data and control we use La20USBm1 program. (developed by me)
Pacific Power source is controlled by Labview program via RS232 without any drivers.If the temperature, measured by NI9211 is more then 70 degree, the ASX-360 is switched off automaticly.
We measure the pressure difference with the help of pressure sensor Metran dd. The accuracy is three Pascal. The output signal is 4 – 20 mA. Then the current goes via 400Om resistor and we measure the voltage (1.6 -8V). To measure the voltage we use DAQ plate La20USB. La20USB and NI9211 are connected to PC via USB interface
Also we control our Pacific Power Source 360-ASX by labview via RS232(There’s no drivers for it – so I use VISA technology)
As software we use La20USMm1 DAQ program. With the help of this program we can adapt and control our plates and Pacific Power Source 360-ASX(via RS232 without any drivers with the help of VISA technology) , get and see all the data and write them to the file.
